This monochord is a little less than 4 feet in length. This length makes it possible to use a yardstick or meter stick, along with the moveable bridges, to divide the string into the different proportions which correspond to musical intervals. These proportions are recognized by the eye, and the corresponding musical intervals are recognized by the ear. The user sees directly the correlation between the visual and the auditory.  This is the most direct method for measuring musical intervals and does not need any further calculations.It’s science without the complications and it’s music with the mathematics.

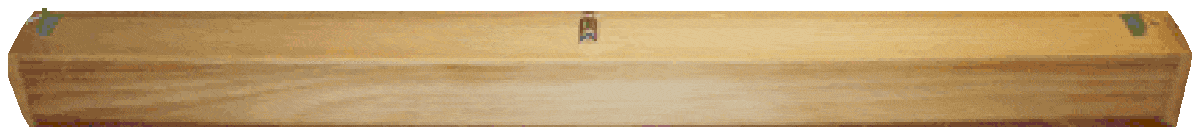

Monochord: Finding Musical Tones, 45 Inches Long
Pythagoras on Chartres Cathedral

Monochord is a one-stringed instrument with movable bridges, used for measuring intervals. The first monochord is attributed to Pythagoras.
The story is told that Pythagoras wished to invent an instrument to help the ear measure sounds the same way as a ruler or compass helps the eye to measure space or a scale to measure weights. As he was thinking these thoughts, he passed by a blacksmith's shop. By a happy chance, he heard the iron hammers striking the anvil. The sounds he heard were all consonant to each other, in all combinations but one. He heard three concords, the diaspason (octave), the diapente (fifth), and the diatessaron (fourth). But between the diatessaron (fourth) and the diapente (fifth), he found a discord (second). This interval he found useful to make up the diapason (octave). Believing this happy discovery came to him from God, he hastened into the shop and, by experimenting a bit, found that the difference in sounds were determined by the weight of the hammers and not the force of the blows. He then took the weight of the hammers and went straight home. When he arrived home, he tied strings from the beams of his room. After that, he proceeded to hang weights from the strings equal to the weights he found in the smithy's shop. Setting the strings into vibration, he discovered the intervals of the octave, fifth and fourth. He then transferred that idea into an instrument with pegs, a string and bridges. The monochord was the very instrument he had dreamed of inventing.

CLICK NOTE TO ORDER

One-String Monochord

44" length by 3.5" wide

Two-String Monochord

44" length by 5.25" wide

CLICK NOTE TO ORDER

How to find intervals on the monochord

Two Methods:

There are different ways to find intervals on the monochord. One way is to divide the string by 1/2,1/3,1/4,1/5, etc., thus giving the harmonic series.
This way is quite straightforward. The second way is to divide the string by the mathematical proportion itself. For instance a string divided into three parts and two parts would give the fifth, a ratio of 3:2.

We are explaining here the second of the two ways for two reasons. The first reason is that when finding an interval by dividing the string by a half, third, fourth, fifth, sixth and so on, you must always go back to the open string. This could slightly change the tuning of the open string because the center bridge would have to be removed to hear the open string. The second reason is that the intervals go out of the octave of the open string, into higher octaves and could be more difficult for your students to hear.

Tuning by the proportions found among the Greeks

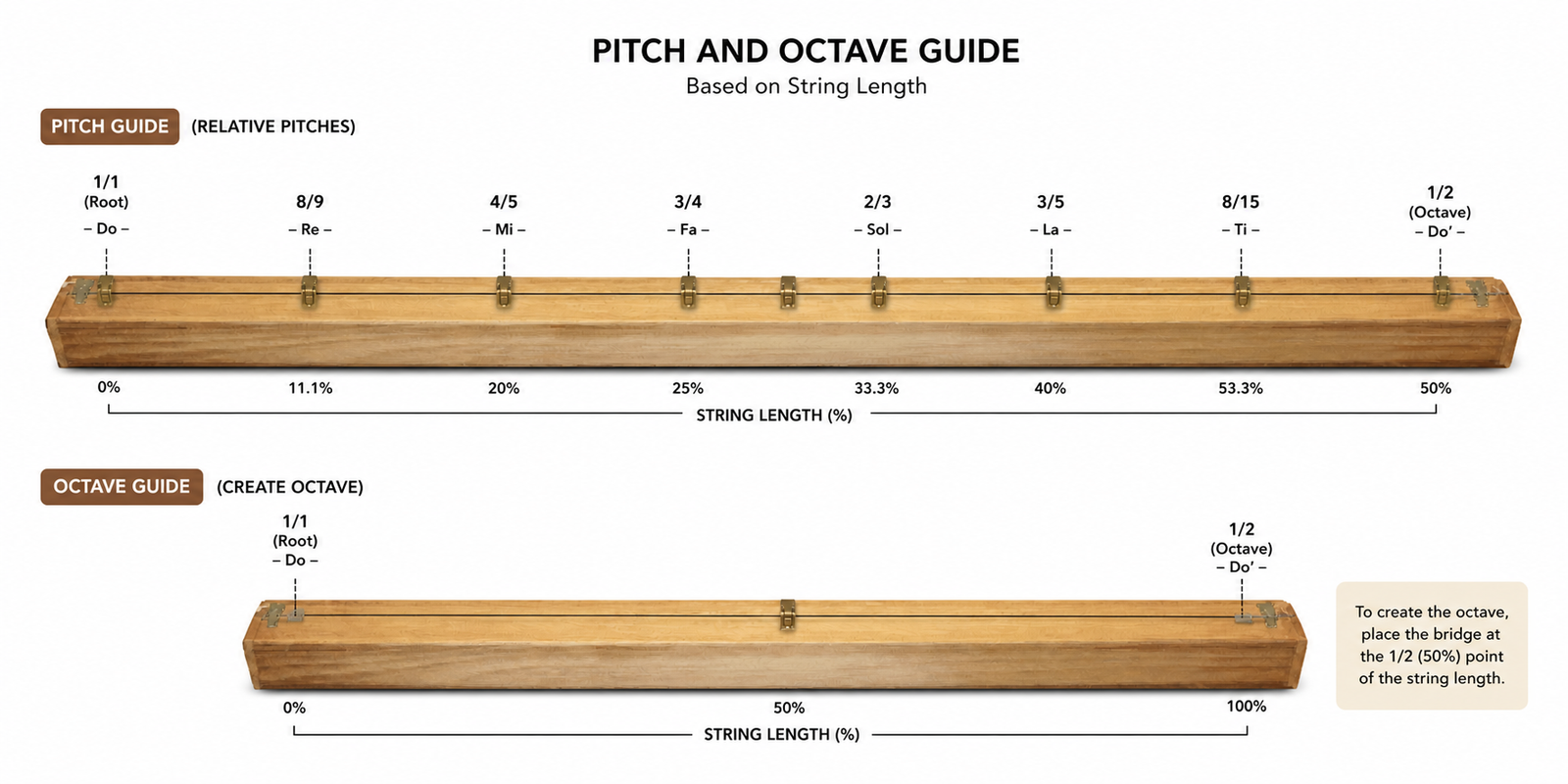

All the bridges on your monochord are moveable. The ratio of the octave is 2:1, the fifth 3:2, the fourth 4:3, the major third 5:4, the minor third 6:5, the major sixth 5:3, the minor sixth 8:5, the whole tone 9:8.

The Octave-ratio 2:1

Place the right bridge on 99 and the center bridge on 66.The string is now
divided in a ratio of 2:1 (66:33). Have your students play the string on either side of the middle bridge to hear the octave.

___________________________________66_________________________99

The fifth-ratio 3:2
Here we are dealing with a ratio which has 5 parts to it (3+2). 5 goes into 100, our complete ruler 20 times (100 divided by 5 equals 20). 20 times 3 equals 60 and 20 times 2 equals 40. Place the middle bridge on 60. The entire string should be on 100. Play both sides of the string the interval is the fifth.

__________________________________________60_____________________________100

The interval of the fourth-ratio 4:3

The numbers 4 and 3 have 7 parts (4+3). Divide 100 by 7 and you get 14 plus a remainder. We won't use the remainder but will multiply 7 times 14 to get 98 (the closest number to 100). 4 times 14 is 56 and 3 times 14 is 42.Move the right bridge to 98 and place the center bridge on 56. your students will hear the interval of the fourth.

_____________________________________56__________________________________98

Major third 5:4

Place the middle bridge on 55, the entire length is 99.

_______________________________________55__________________________________99

Minor third 6:5 ratio

Place the middle bridge on 54. the entire string length is 99. The interval heard on either side of the middle bridge is the minor third.

______________________________________54__________________________________99

The major sixth 5:3 ratio
Place the middle bridge on 60. The entire length of the string should be 96.

________________________________________60_________________________________96

The minor sixth-8:5 ratio

Place the middle bridge on 56. The entire string length should be 91. Play both sides of the string, the interval is the minor sixth.

______________________________________56__________________________________91

The whole tone, ratio 9:8

Place the middle bridge on 45. The entire string should be 85.

___________________________________45_____________________________________85

The half step was called a limma by the Greeks. To find this interval the entire ruler should be 99.8, while the middle bridge is 51.2. The ratio of this interval is 256:243. The Greeks even have another type of half tone, the apotome which has a ratio of 2187:2048. This ratio can also be found on the monochord. However if you think the Greeks went a little too far with their proportions, they didn't come close to our equal temperament (tuning of the piano) a ratio of 1,059,463,094 : 1 ,000,000,000, the ratio of our half tone
